Maxi-Cap Platinum Destoner

SKU: 305P, 605P, 905P, 1205P Categories: , Tags: , ,

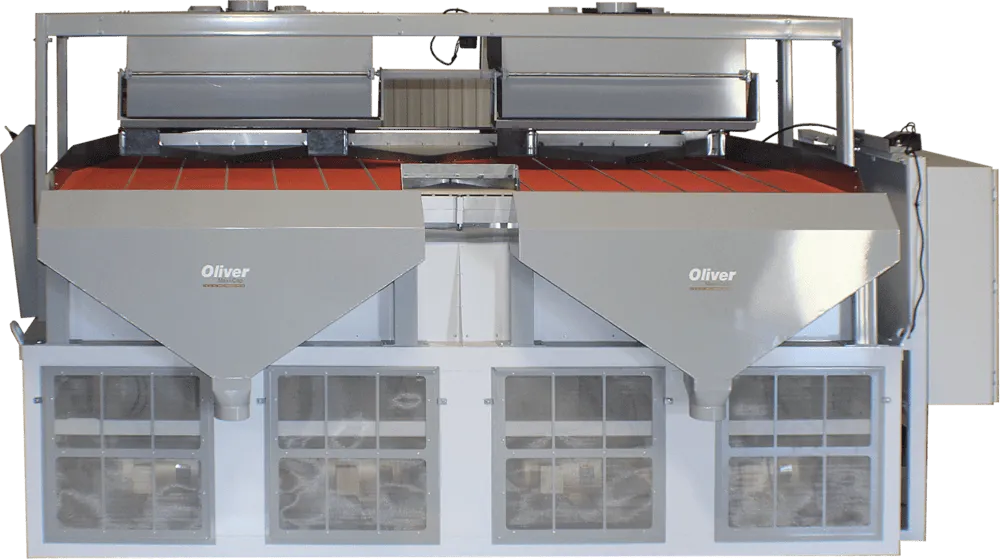

1205-Platinum-Destoner (1)

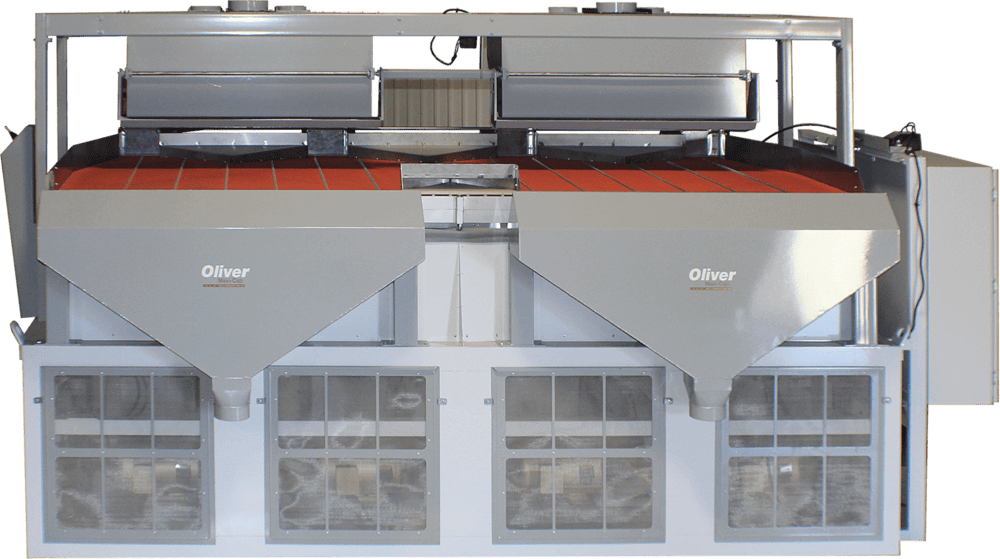

  • 1205-Platinum-Destoner (1)
  • 1205 Platinum Destoner_Discharge End

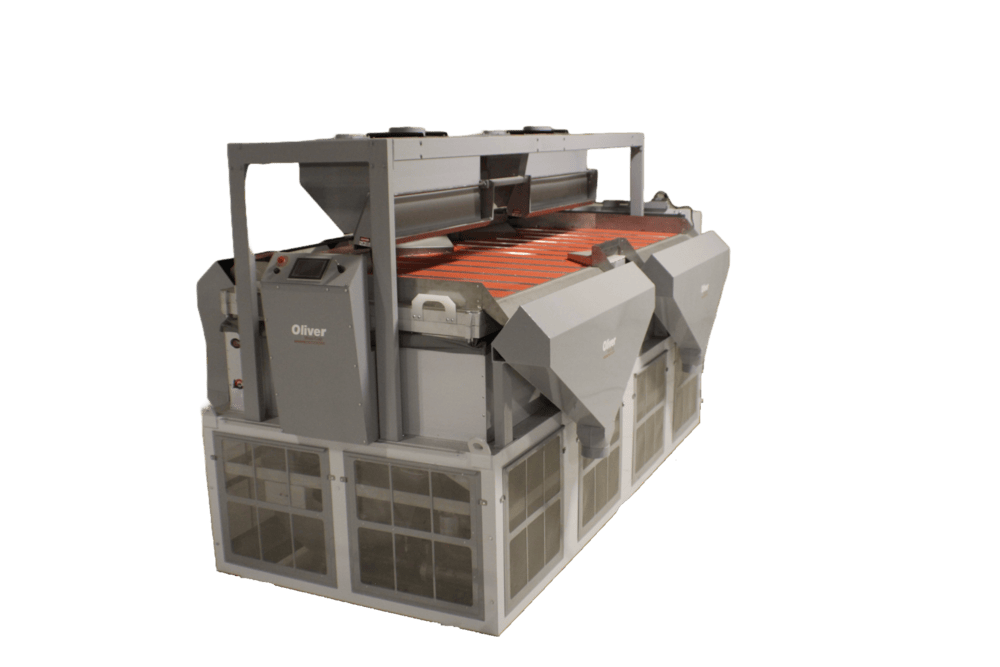

  • 1205 Platinum Destoner_Panel View_No Background

Reliable. Accurate. Efficient. Built for Performance.

The Platinum Destoner is part of Oliver Manufacturing’s newest line of advanced destoning equipment—designed to raise the bar in precision, durability, and ease of use. Whether you’re processing agricultural products or reclaiming industrial materials, this state-of-the-art system delivers consistent, high-quality results with the most refined controls on the market.

The Platinum Destoner offers unmatched precision and ease of use, starting with its intuitive HMI touchscreen that allows operators to save and recall multiple product recipes. Fine-tuned VFD fan control ensures precise air stratification on the deck for consistent separation, while individual feed gates provide uniform product distribution. An automated heavy-fraction gate—controlled directly from the touchscreen—streamlines separation timing. Engineered for efficiency, the machine features fast startup, reduced setup time, and a counterbalanced design for smooth operation with low noise levels. Built with durability in mind, it includes UL and CUL approved electrical cabinets, remote support via Tosibox® VPN, and optional post-purchase training and service packages to keep your operation running at peak performance.

Contact us about this product

Product Resources

Manuals, Parts Lists, and Brochures

Additional information

Industry

Industrial Applications

Product Features

Operating control
  • HMI touchscreen for operator interface
  • VFD fan control for precise air control to stratify product on the deck
  • Individual feed control gate with uniform product distribution across the deck
  • Most precise adjustments on the market to get the heaviest cut out of your product
Ease of use
  • Use the HMI touchscreen to save and recall multiple recipes
  • Dynamic controls are adjustable while machine is in operation
  • Automated high-side heavy fraction gate controlled by the HMI touchscreen for timed separation
Reliability
  • UL and CUL approved electrical cabinets
  • Post-purchase training and machine service packages available
  • Remote support from anywhere in the world using our Tosibox® VPN
Performance
  • Efficient separation on heavy fraction
  • Counterbalanced for smooth operation with low noise at operator level (88db)
  • Machines capabilities or versatility go beyond agriculture and can handle reclamation products
  • Reduced machine setup, more efficient start-up of incoming product and stopping product flow
Configurations
  • Compatible with plant SCADA system
  • Machine configurations includes, aspirating feeder or dust hood, vibratory feeder, stainless steel contact points, and deck configurations.

Specifications

Mechanicals

Machine Model 305PL 605PL 905PL 1205PL
Height 94.5” (240 cm) 94.5” (240 cm) 94.5” (240 cm) 94.5” (240 cm)
Width 76” (193 cm) 112” (285 cm) 148” (376 cm) 184” (467 cm)
Length 135” (343 cm) 135” (343 cm) 135” (343 cm) 135” (343 cm)
Weight 2,800 lbs (1270 kg) 3,800 lbs (1,724 kg) 4,800 lbs (2,177 kg) 5,800 lbs (2,631 kg)
Deck area 32”X60”(81cmX152cm) 65”X60”(165cmX152cm) 96”X60”(244cmX152cm) 118”X60”(300cmX152cm)
With dust hood:
Height 94.5” (240cm) 94.5” (240 cm) 94.5” (240 cm) 94.5” (240 cm)
Width 3,300 lbs (1,497 kg) 4,300 lbs (1,950 kg) 5,300 lbs (2,404 kg) 6,300 lbs (2,858 kg)

Amp draw @480/3/60 42 amps 52 amps 62 amps 72 amps
Amp draw @240/3/60 84 amps 108 amps 124 amps 144 amps
Fan zones 1 2 3 4
Fan control VFDS VFDS VFDS VFDS
High side gate PLC 1 2 3 4
Warranty 1 year 1 year 1 year 1 year



Capacity

Machine Model 305PL 605PL 905PL 1205PL
Density Capacity CFM Capacity CFM Capacity CFM Capacity CFM
Corn 56 12,000 4,200 22,800 10,000 33,600 17,000 45,600 25,000
Garbanzo beans 60 10,000 4,200 19,000 10,000 28,000 17,000 38,000 25,000
Lentils 60 10,000 4,200 19,000 10,000 28,000 17,000 38,000 25,000
Peas 43 10,000 4,200 19,000 10,000 28,000 17,000 38,000 25,000
Pinto Beans 60 10,000 4,200 19,000 10,000 28,000 17,000 38,000 25,000
Popcorn 56 10,000 4,200 19,000 10,000 28,000 17,000 38,000 25,000
Red Kidney Beans 60 10,000 4,200 19,000 10,000 28,000 17,000 38,000 25,000
Soybeans 12,500 10,000 4,200 23,800 10,000 35,000 17,000 47,500 25,000
