Oliver Fluidized Bed Dryers for seeds prevent product clumping, simplify cleanup and improve the finished appearance of seed coatings and treatments. And all while cutting dry time! This is a revolutionary seed dryer solution to the frustrations of clumping and bridging treated seeds and edibles. The FBD uses a combination of air in motion through a vibrating, tilted table. Seed flow is converted to a “fluidized” suspension, making gentle, uniform drying possible for coated, treated, or washed seeds.

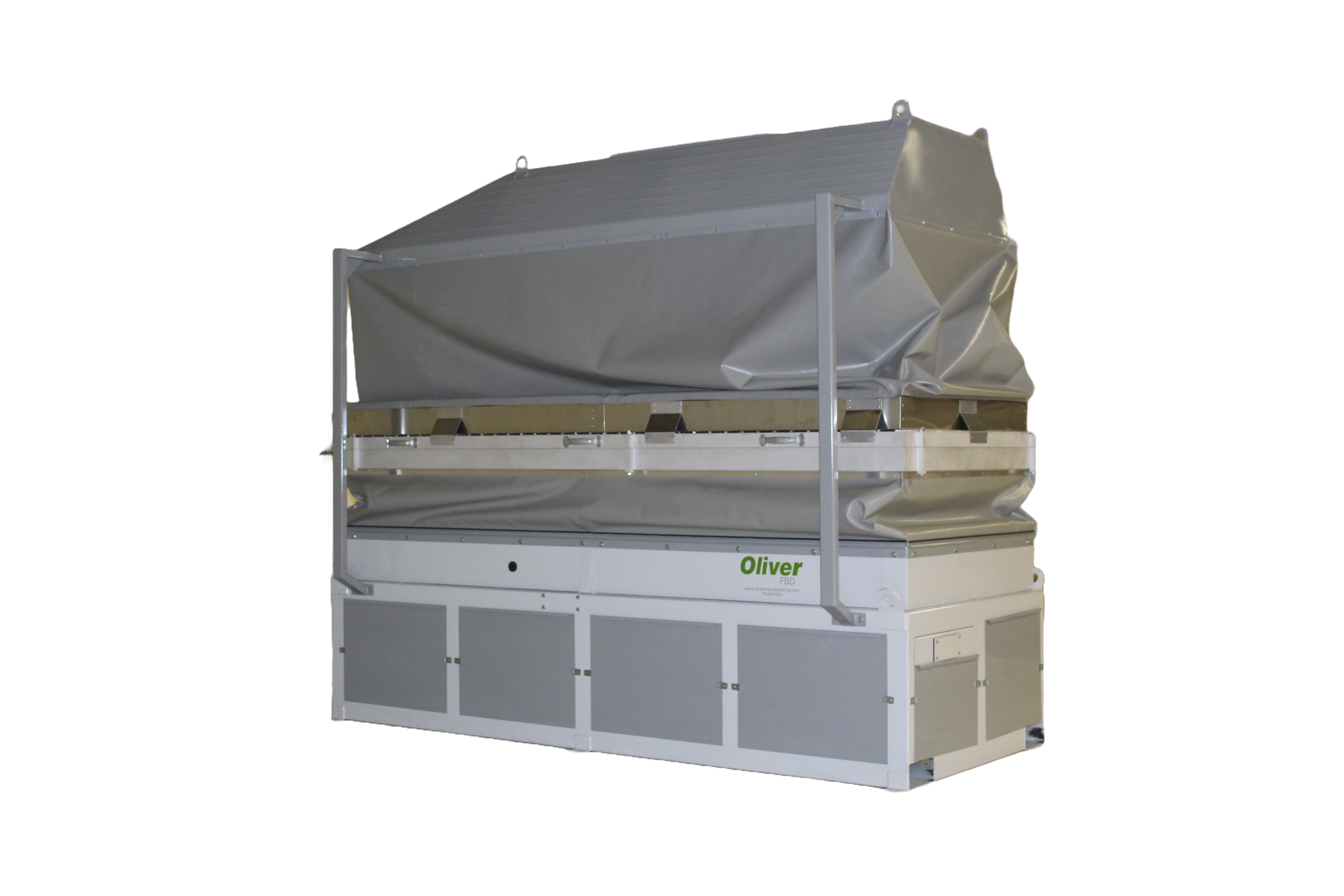

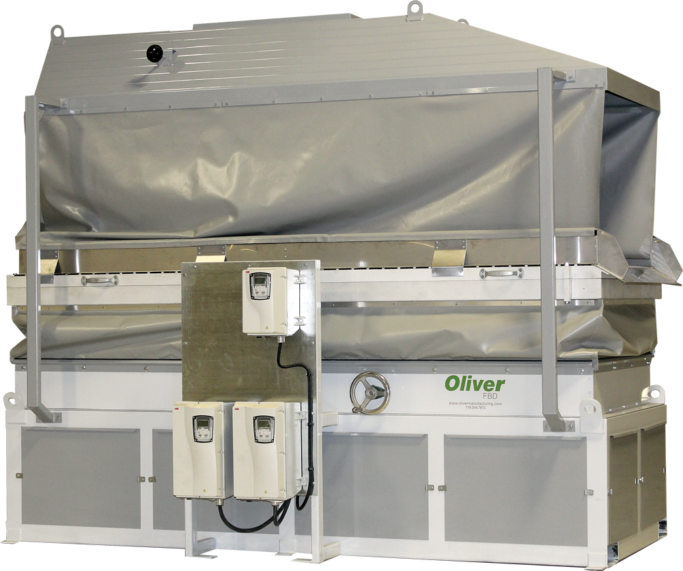

Fluidized Bed Dryer (Standard)
Product Resources
Manuals, Parts Lists, and Brochures
Brochure
Product Manual
Additional information
| Industry | Food, Industrial Applications, Seed and Grain |
|---|
Product Features
- Flame
- Steam
- Water
- Levers
- Variable Frequency Drive (VFD) control for easy adjustment of fan speed
- A separate air system for operation is not required
- Fluidization prevents erosion of the treated seed
- Fluidizes and dries treated seed and untreated product(s) evenly
- Decks are designed and built to product specification with custom overcover and undercover screen size determined for application need
- Efficient air zone control from initial stratification through final discharge
- Removes as much as 800 pounds of moisture per hour
- UL and CUL electrical cabinets are available for efficient machine installation and wiring
- Custom scalp screen available to add an extra mode to prevent clumping at discharge
- Heated dryer package options available: steam, water, and flame
- The estimated power required is 480V phase, which varies on location and separation
| MACHINE MODEL | FBD 307 | FBD 410 | FBD 512 | FBD 616 |
| Height | 81.5” (207 cm) | 84” (213 cm) | 94” (239 cm) | 105” (267 cm) |
| Width | 68” (172 cm) | 64” (163 cm) | 76” (193 cm) | 110” (279 cm) |
| Length | 114” (290 cm) | 154” (391 cm) | 174” (442 cm) | 260” (660 cm) |
| Weight | 2,850 lbs (1,293 kg) | 4,000 lbs (1,814 kg) | 5,600 lbs (2540 kg) | 7,600 lbs (3,447 kg) |
| Deck size | 36” x 84” (91 cm x 213 cm) | 48” x 120” (122 cm x 305 cm) | 60” x 144” (152 cm x 366 cm) | 72” x 207” (183 cm x 526 cm) |
| Air/fan sections | 2 | 2 | 3 | 3 |
| CFM maximum | 9,000 (255 cmm) | 18,000 (510 cmm) | 27,000 (765 cmm) | 32,000 (906 cmm) |
| Estimated water removal | 150 lbs/hr (68 kg/hr) | 332 lbs/hr (151 kg/hr) | 500 lbs/hr (227 kg/hr) | 800 lbs/hr (363 kg/hr) |
| Estimated capacity (soy) ambient* | 315 lbs/min (143 kg/hr) | 600 lbs/min (272 kg/hr) | 900 lbs/min (408 kg/hr) | 1,440 lbs/min (653 kg/hr) |
| Estimated power @ 480V 3 Phase | 60A** | 65A | 70A | 70A |
