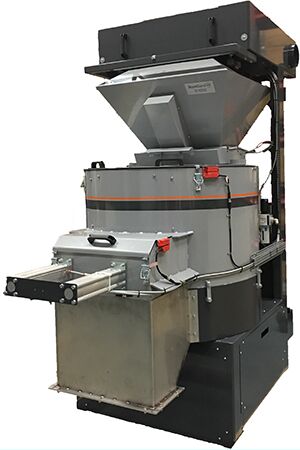

R1000 Batch Seed Treater

  • R1000wp

The NoroGard R1000 Batch Seed Treater stands for an easily operated batch seed treater, designed for complex treatments with a coating capacity of 30 tons/hour. The seed treater machine comes with a range of customization options to make sure it fits your pelletizing and coating needs. The R1000 provides seed treatment within a closed system with all vital parts easily accessible for cleaning and service, making it the obvious choice for quality treatment of each seed for good economy.

Designed for complex treatments to meet high demands regarding application quality, reliability, operator safety and economy. Equipped to meet your needs for dressing, incrustation, coating and pelleting of seeds with diameter minimum 2 mm. Easy operated and controlled with an automatic PLC system.

Click here for more information

Product Resources

Manuals, Parts Lists, and Brochures

Download the brochure

Product Features

• R1000, Schneider PLC controlled w. NoroGard software including receipe management and manual calibration.

or

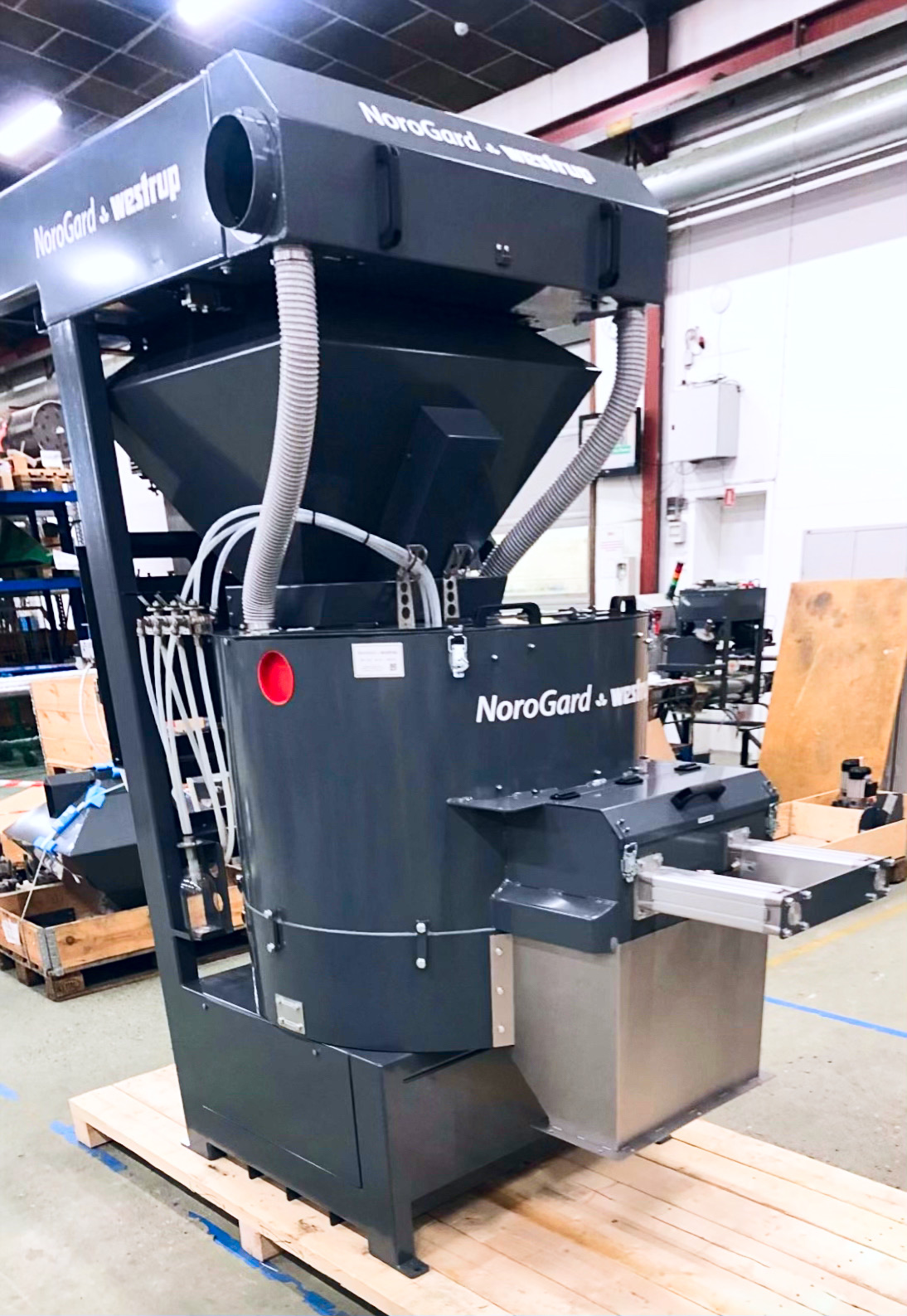

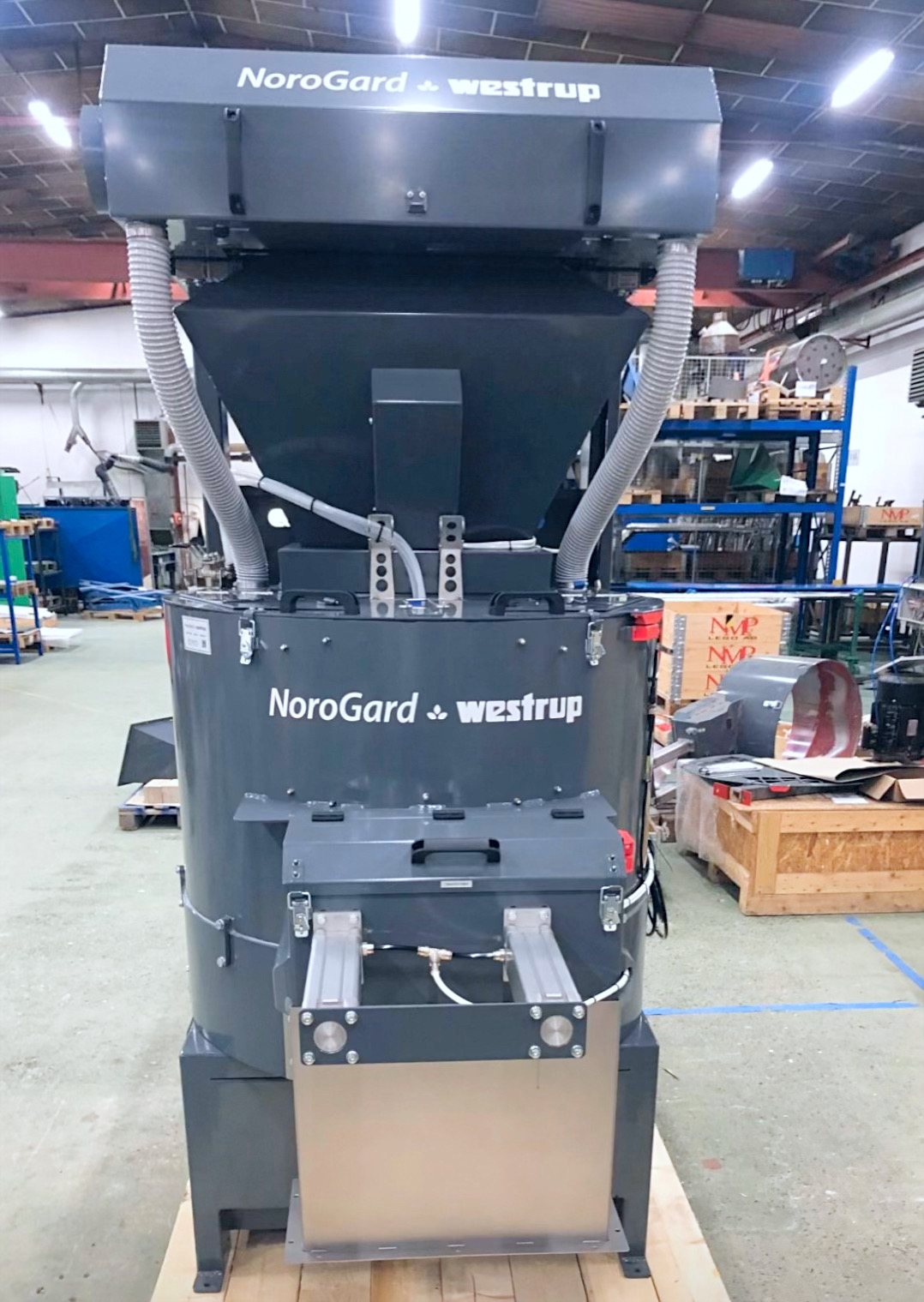

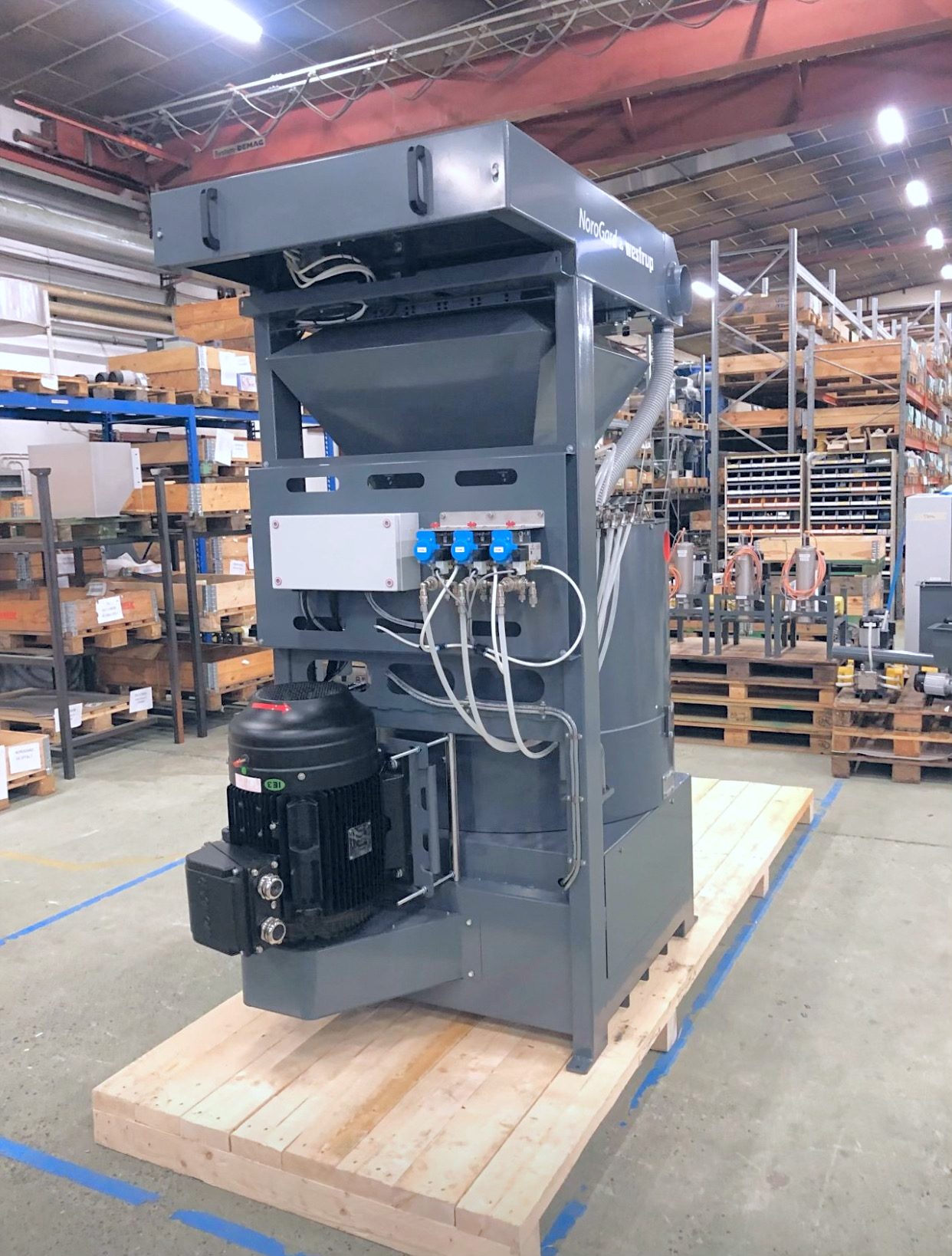

• R1000 ULD, Schneider PLC controlled with NoroGard software including recipe management and automatic calibration with continuous flow control.

• Up to ten separate dosage units.

• Powder application systems.

• Air drying systems.

• Printer for printing out statistics.

• Pre-mixing station.

• Remote control box consisting of a touchscreen with display and a start/stop handle. This should preferably be placed at the filling-up station.

• Varied speed of rotor and spinning cup

Specifications

Power Requirement 35 kW
Compressed Air (at 5,5 bar) 100 l/min
Air Extraction 500 m3/h
Capacity (batch volume) 10-200 liters
Capacity (wheat, 15 sec mixing) 30 ton/hour
Weight 1550 kg
Width 1100mm
Depth 2300 mm
Height 2300 mm
Warranties Orgalime S2012
