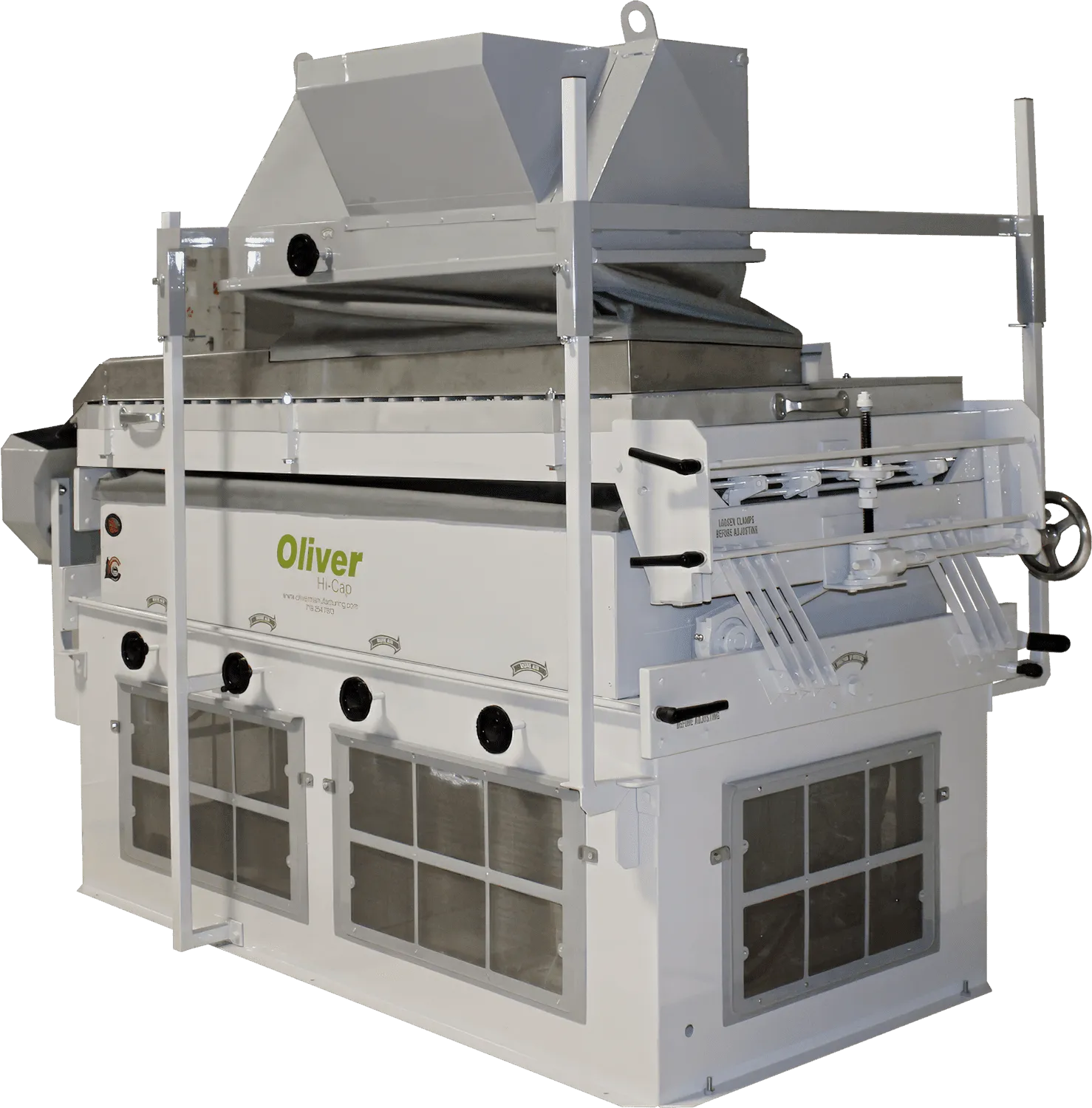

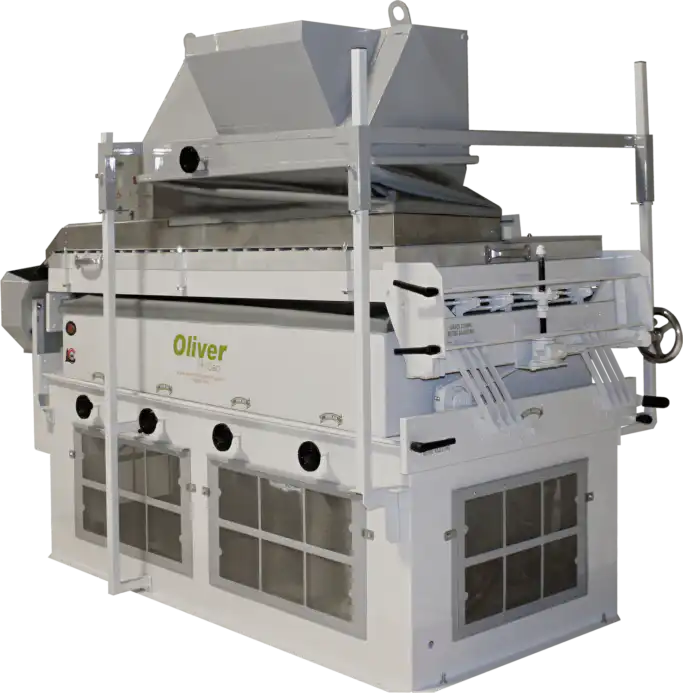

Hi-Cap Gravity

SKU: HC, 51, HC 81, HC 161, HC 241 Categories: ,
hi-cap gravity
  • hi-cap gravity
  • Oliver Hi-Cap Separator 161

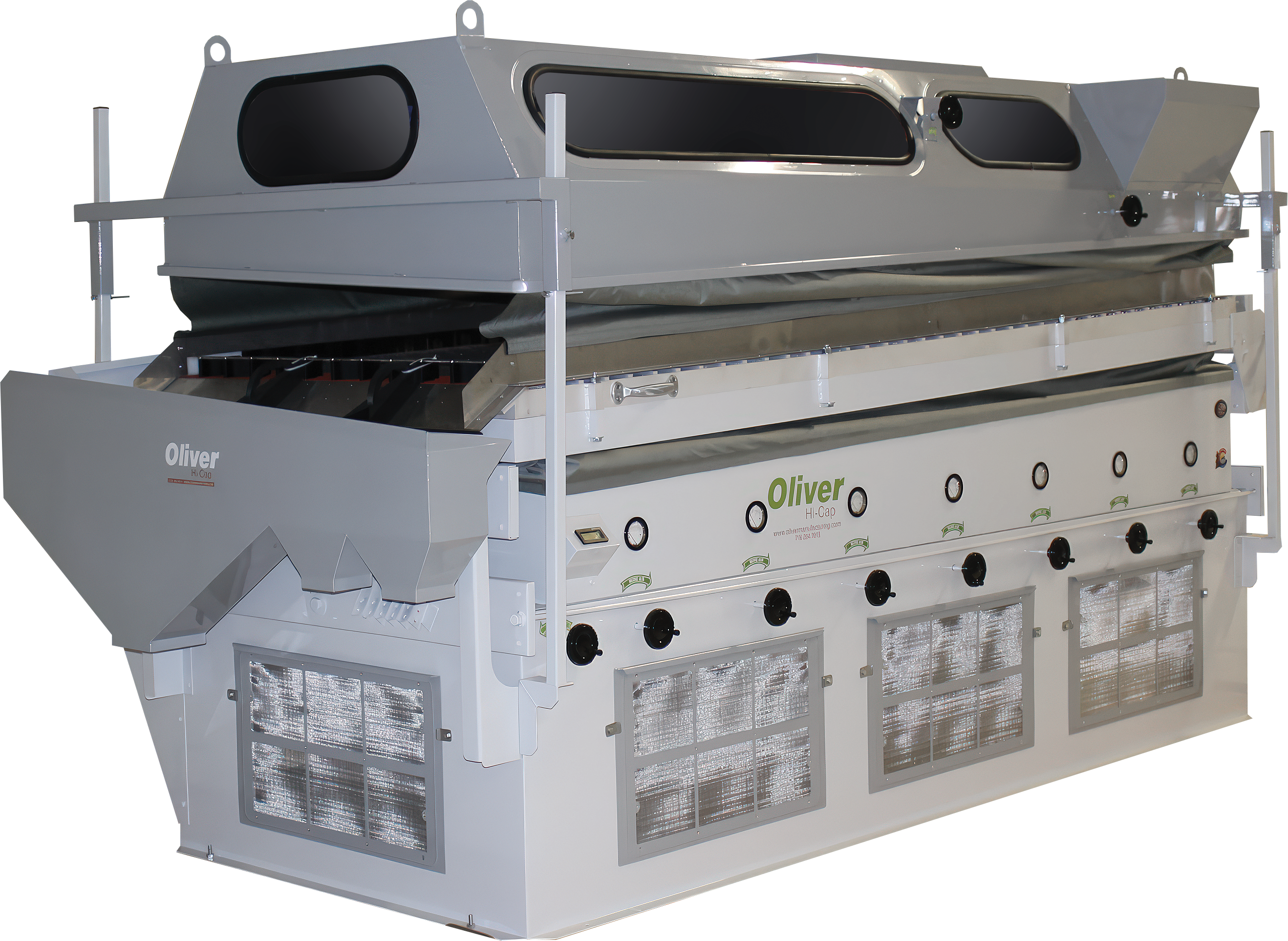

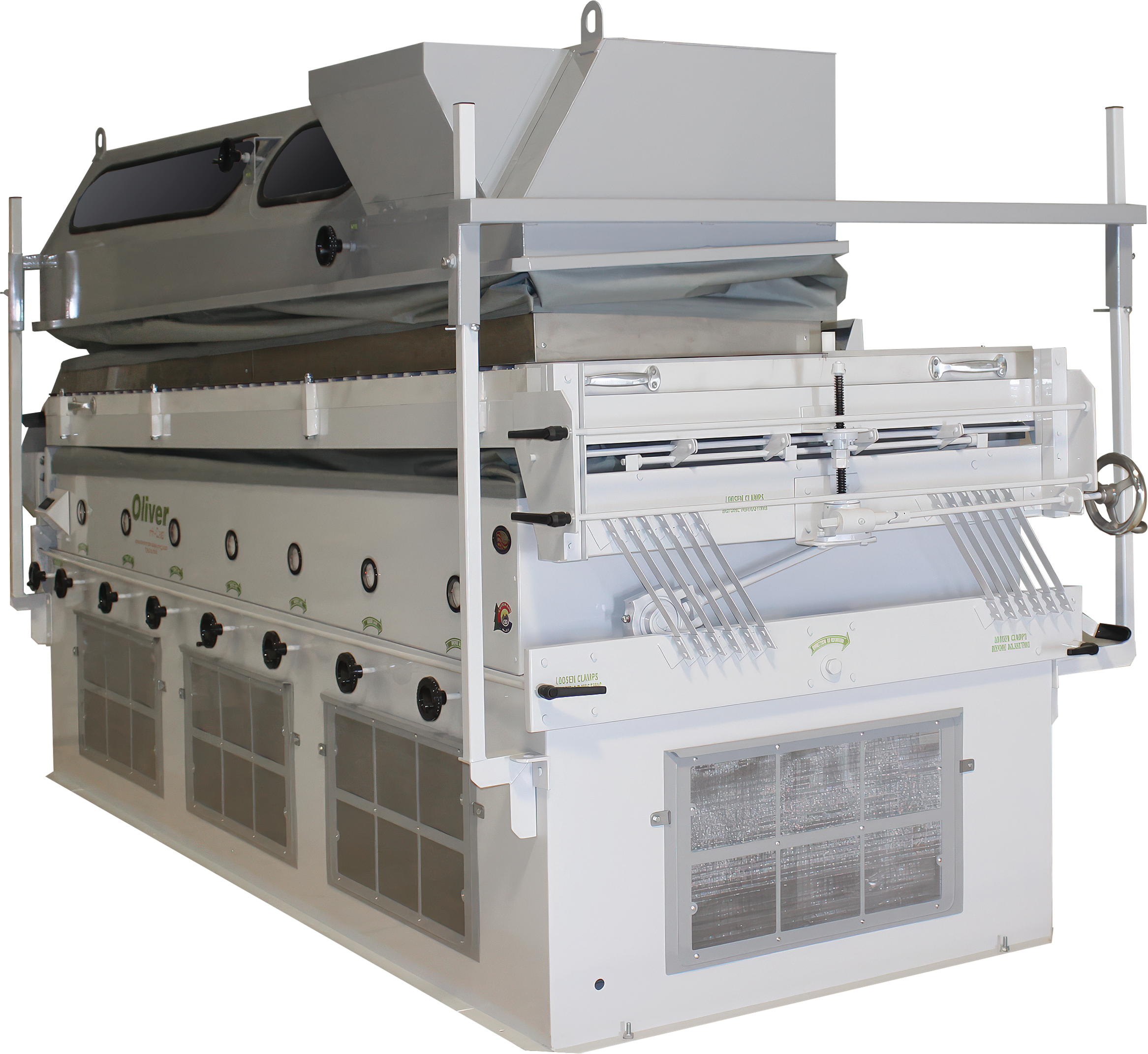

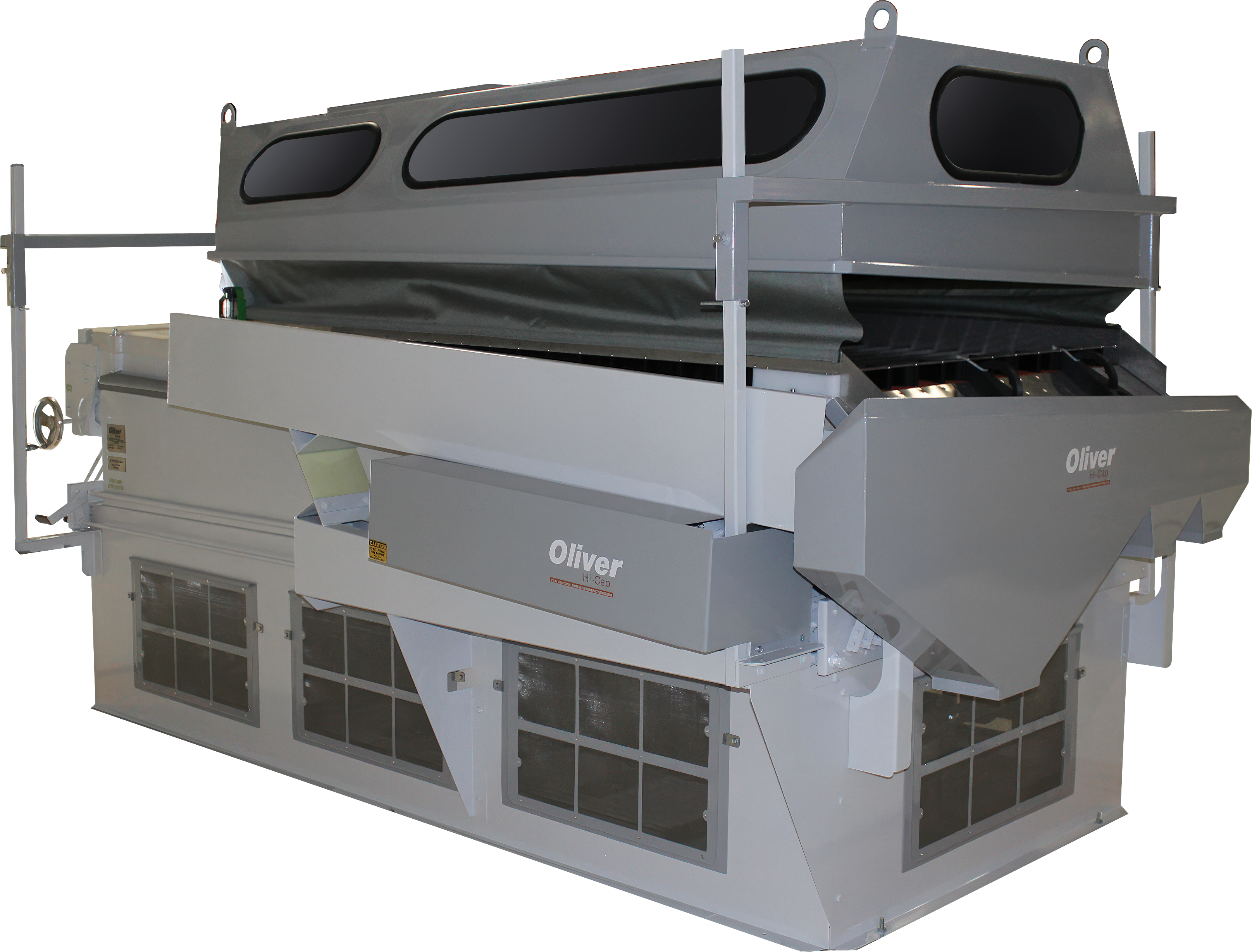

  • Oliver Hi-Cap Separator 241

Reliable. Accurate. Efficient.

The most iconic gravity separator in the world, Oliver’s legendary Hi-Cap Gravity Separator is designed and constructed to deliver decades of reliable and predictable service. The Hi-Cap series separates continuous flow of granular products. Multiple fan zones allow for efficient control of product flow. Decks are designed and built to optimally perform for your specific product.

Oliver Hi-Cap density separators are fully adjustable in use for air volume, eccentric speed, 2-axis tilt and rate of feed. These high-capacity separators include CAD-designed fan and rectangular deck for separating greater quantities faster and with greater accuracy than any other separator on the market.

Click here for more information

Contact us about this product

Product Resources

Additional information

Purpose

Separating
Industry

Food, Industrial Applications, Seed and Grain
Capacity

Small, Medium, Large
Technology

Manual

Product Features

Capacities
Machine Model 51 81 161 241
Product Bulk Capacity CFM Capacity CFM Capacity CFM Capacity CFM
Brassica 35 600 3,000 1,100 3,500 1,700 4,500 2,150 6,000
Corn 56 3,600 8,500 5,800 10,000 9,600 12,500 14,300 18,000
Garbanzo beans 63 2,500 8,500 4,300 10,000 7,100 12,500 10,500 18,000
Fescue 18 600 2,500 900 3,600 1,500 4,800 2,200 5,000
Peas 60 8,500 3,000 5,000 10,000 8,300 12,500 12,400 18,000
Soybeans 60 2,500 8,500 4,300 10,000 7,100 12,500 10,500 18,000
Sunflower 32 1,100 5,500 2,700 7,500 4,500 8,800 6,700 10,000
Wheat 60 2,500 5,500 4,300 7,500 7100 8,800 10,500 10,000



Operating control
  • Simple and highly effective adjustments
  • Intuitive manual controls
  • Adjustable dual-axis tilt for enhanced quality and capacity
  • A multi-fan system with independent fan-dampening control
  • Gauges for side tile, end raise, feed flow, air flow pressure, and eccentric speed*
Ease of Use
  • All adjustments can be made safely while in operation
  • A separate air system for operation is not required
  • Dust control with an optional full or partial dust hood with exhaust air adjustments
  • Variable Frequency Drive control for easy adjustments of deck eccentric speed
  • High side material bypass gates for process optimization
Reliability
  • Nearly a century of experience in gravity table engineering and manufacturing
  • Low maintenance for reduced downtime
  • Post-purchase training and machine service packages are available
  • Spare parts available to order
Performance
  • Separates product efficiently
  • Rectangular deck design allows for maximum product separation time
  • Wide range of deck eccentric speed to optimize separation performance
  • Efficient air zone control from initial stratification through final discharge
  • Decks are designed and built to your product specifications with custom overcover and undercover
Configurations
  • UL/CUL electrical cabinets are available for efficient machine installation and wiring
  • Square-to-round discharge hopper transition for gentle product handling and hookups and easier hookups*
  • Aspirating feeder removes fine particles and keeps air clean*
  • Counterbalanced for smooth operation*, durable coated overcover material, machine setting indicators*, VFD, Accu-Flo feed gate, discharge options, full or partial dust hood, stainless steel available for food grade products, and other custom configurations available

* Standard on Master Series

Specifications

Machine model

31

51
Height

69” (175.3cm)

69” (175.3 cm)
Width

49” (124.6 cm)

56” (142.2 cm)
Length

77” (195.6 cm)

90.5” (26.7 cm)
Weight

960 lbs (435 kg)

1,200 lbs (544 kg)
Deck area

26” x 59” (66 cm x 147 cm)

33” x 70” (83 cm x 178 cm)
With deck hood
Height

75” (190.5 cm)

76” (193 cm)
Weight

47” (119.4 cm)

54” (137 cm)
Length

77” (195.6 cm)

90.5” (226.7 cm)
Weight

1,250 lbs (556 kg)

1,500 (680 kg)
Amp draw @480/3/60

10 amps

13 amps
Amp draw @240/3/60

20 amps

26 amps
Fan zones

3

4
Fan control

Manual air gate

Manual air gate
Warranty

1 year

1 year

161

241
Height

70” (177.8 cm)

72” (182.9 cm)
Width

62” (157.5 cm)

68” (172.7 cm)
Length

108.5” (231 cm)

136.5” (34.7 cm)
Weight

1,300 lbs (589 kg)

1700 lbs (771 kg)
Deck area

39” X 88” (99 cm X 223 cm)

45” x 116” (114 cm x 295 cm)
With deck hood
78” (198.1 cm)

80” (203.2 cm)

78” (198.1 cm)
60” (152.4 cm)

66” (167.6 cm)

60” (152.4 cm)
128.5” (326.4 cm)

136.5” (346.7 cm)

128.5” (326.4 cm)
1,700 (771 kg)

2,200 lbs (997 kg)

1,700 (771 kg)
Amp draw @480/3/60

18 amps

23 amps
Amp draw @240/3/60

36 amps

46 amps
Fan zones

6

7
Fan control

Manual air gate

Manual air gate
Warranty

1 year

1 year
