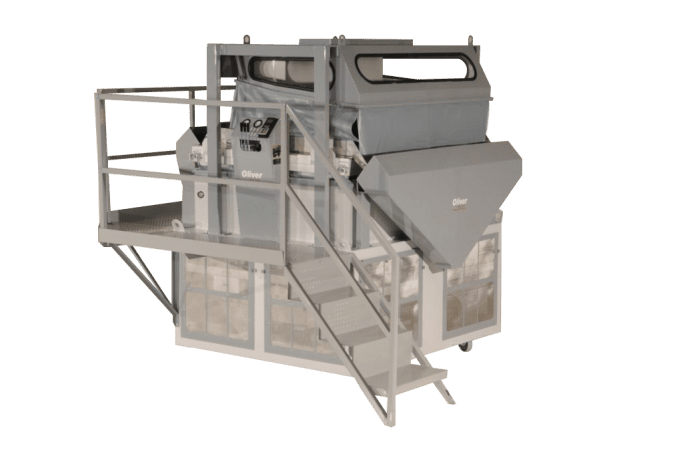

The Maxi-Cap is an Oliver destoner that processes up to 60,000 lbs per hour of industrial materials removing stone, glass, metal or sands from lumber products or plastics. This destoning machine is equally effective processing and purifying agricultural products like beans, corns or nuts. Crafted to be long-lasting and dependable load after load, the larger Maxi-Cap machine is still the most precise Destoner available anywhere, thanks to precise Oliver control.
Maxi Cap Destoners
Product Resources
Manuals
Parts Lists
Brochures
Additional information
| Purpose | Sorting |
|---|---|
| Industry | Food, Industrial Applications, Seed and Grain |
| Capacity | Small, Medium, Large |
| Technology | Manual |
Product Features
| Machine Model |
305 |
605 |
|||
| Product |
Density |
Capacity |
CFM |
Capacity |
CFM |
| Corn |
56 |
12,000 |
4,200 |
22,800 |
10,000 |
| Garbanzo |
63 |
10,000 |
4,200 |
19,000 |
10,000 |
| Lentils |
60 |
10,000 |
4,200 |
19,000 |
10,000 |
| Peas |
60 |
10,000 |
4,200 |
19,000 |
10,000 |
| Pinto Beans |
60 |
2,000 |
4,200 |
19,000 |
10,000 |
| Popcorn |
56 |
10,000 |
4,200 |
19,000 |
10,000 |
| Soybeans |
60 |
12,500 |
4,200 |
23,750 |
10,000 |
| Red Kidney Beans |
58 |
10,000 |
4,200 |
19,000 |
10,000 |
| Machine Model | 905 | 1205 | |||
| Product |
Density |
Capacity |
CFM |
Capacity |
CFM |
| Corn |
56 |
33,600 |
17,000 |
45,650 |
25,000 |
| Garbanzo |
63 |
28,000 |
17,000 |
38,000 |
25,000 |
| Lentils |
60 |
28,000 |
17,000 |
38,000 |
25,000 |
| Peas |
60 |
28,000 |
17,000 |
12,000 |
25,000 |
| Pinto Beans |
60 |
38,000 |
17,000 |
12,000 |
25,000 |
| Popcorn |
56 |
38,000 |
17,000 |
12,000 |
25,000 |
| Soybeans |
60 |
47,500 |
17,000 |
12,000 |
25,000 |
| Red Kidney Beans |
58 |
38,000 |
17,000 |
12,000 |
25,000 |
- Simple and highly effective adjustments
- Intuitive hydraulic controls for air and tilt
- Built-in fan system with dampening control
- Independent gauges for:
- Deck tilt
- Airflow
- Product feed rate
- Eccentric speed
- All adjustments can be made safely while the machine is in operation
- Deck tilt
- Airflow
- Product feed rate
- Eccentric speed
- A separate air system for operation is not required
- Adjustable heavy discharge gate(s)
- Variable Frequency Drive (VFD) control for easy adjustment of deck eccentric speed
- Oliver has nearly 100 years of experience in density separation
- Robust and full-frame construction
- Low maintenance for reducing downtime
- Post-purchase training and machine service packages are available
- Spare parts are available upon order
- Efficient separation of heavy fraction
- Wide range of deck eccentric speed to optimize separation performance
- Efficient air control with multi-fan system for optimized separation quality
- Counterbalanced for smooth operation
- Decks are designed and built to your product specifications with custom overcover and undercover
- UL and CUL electrical cabinets are available for efficient machine installation and wiring
- Durable coated overcover material, Accu-Flo feed gate, dust hood, stainless steel available for food grade products, aspirating feeder, square-to-round discharge, and other options available
- Platinum package available with:
- Touchscreen controls
- Indicator gauges
- Process automation
- Memory recall for all controls
- Add the Platinum package to any Maxi-Cap Destoner by specifying model numbers: 305P, 605P, 905P, or 1205P.
Specifications
| Machine model |
305 |
605 |
905 |
1205 |
||
| Height |
92” (234 cm) |
92” (234 cm) |
92” (234 cm) |
92” (234 cm) |
||
| Width |
76” (193) |
112” (285 cm) |
148” (375 cm) |
184” (467 cm) |
||
| Length | 108” (274 cm) | 108” (274 cm) | 108” (274 cm) | 108” (274 cm) | ||
| Weight | 2,800 lbs (1,270 kg) | 3,800 lbs (1,704 kg) | 4,800 lbs (2,177 kg) | 5,800 lbs (2,631 kg) | ||
| Deck area |
32” x 60” (81.3 cm x 152.4 cm) |
65” x 60”
(165.1 cm x 152.4 cm) |
96” X 60”
(243.8 cm X 152.4 cm) |
118” x 60”
(299.7 cm x 152.4 cm) |
||
| With dust hood | ||||||
| Height | 94” (239cm) | 94” (239cm) | 94” (239cm) | 94” (239cm) | ||
| Weight | 3,300 lbs (1,497 kg) | 4,300 lbs (1,950 kg) | 5,300 lbs (2,404 kg) | 6,400 lbs (2,903 kg) | ||
| Amp draw @480/3/60 | 12 amps | 19 amps | 26 amps | 32 amps | ||
| Amp draw @240/3/60 | 24 amps | 38 amps | 52 amps | 64 amps | ||
| Fan zones | 1 | 2 | 3 | 4 | ||
| Fan control | Manual air gate | Manual air gate | Manual air gate | Manual air gate | ||
| Warranty | 1 year | 1 year | 1 year | 1 year | ||
