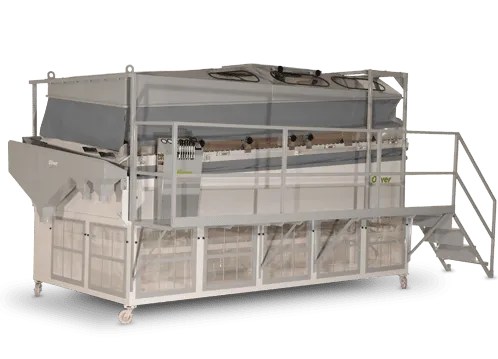

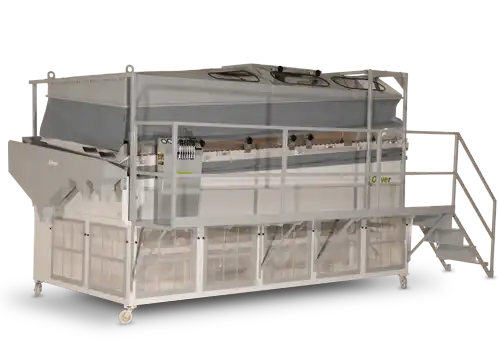

The “big brother” of our Hi-Cap series separator delivers unexcelled cost efficiency on high volume installations where density separation, contaminant removal, and size separation are needed. The Maxi-Cap high volume material separation machine removes heavier stone, glass, metal and sands as well as lighter lumber or agriculture products or plastics. Precise hydraulics and Opti-Drive automation make adjustment during operation a snap. Aspirating feeder removes the lightest contaminants as product is being introduced.
Maxi Cap Gravity
Product Resources
Parts Lists
Brochures
Additional information
| Purpose | Separating |
|---|---|
| Industry | Food, Industrial Applications, Seed and Grain |
| Capacity | Large |
| Technology | Manual |
Product Features
| Machine Model |
3600 |
4800 |
|||
| Product |
Bulk |
lb/hr |
CFM |
Capacity |
CFM |
| Corn |
56 |
30,000 |
22,000 |
42,000 |
28,000 |
| Cotton seed |
43 |
24,000 |
22,000 |
33,600 |
28,000 |
| Lentils |
60 |
22,000 |
18,000 |
30,800 |
22,000 |
| Peas |
60 |
26,000 |
22,000 |
36,400 |
28,800 |
| Pinto beans |
60 |
27,000 |
22,000 |
37,800 |
28,000 |
| Popcorn |
56 |
22,000 |
22,000 |
30,800 |
28,000 |
| Soybeans |
60 |
22,000 |
22,000 |
30,800 |
28,000 |
| Wheat |
60 |
22,000 |
18,000 |
37,800 |
28,000 |
- Simple and highly effective hydraulic adjustments
- Adjustable dual-axis tilt for enhanced quality and capacity
- Multi-fan system with independent fan dampening control
- Machine mounted operator console with platform
- All adjustments can be made safely while the machine is in operation
- Side tilt
- End raise
- Airflow
- Product feed rate
- Eccentric speed
- A separate air system for operation is not required
- High-side material bypass gates for increased capacity
- Variable Frequency Drive (VFD) control for easy adjustment of deck eccentric speed
- Intuitive controls for ease of machine operation and tuning
- Oliver has nearly 100 years of experience in gravity table engineering and manufacturing
- Robust and full-frame construction
- Low maintenance for reduced downtime
- Post-purchase training and machine service packages are available
- Spare parts are available upon order
- Separates larger quantities of product faster and more efficiently
- Decks are designed and built to your product specifications with custom overcover and undercover
- Rectangular deck design allows for maximum product separation time
- Wide range of deck eccentric speed to optimize separation performance
- Efficient air zone control from initial stratification through final discharge
- UL and CUL electrical cabinets are available for efficient machine installation and wiring
- Durable coated overcover material, machine setting indicators, Variable Frequency Drives (VFD), Vibratory or Accu-Flo feed gate, discharge options, full or partial dust hood, stainless steel available for food grade products, custom catwalks, square-to-round discharge and other options available
- Platinum Package available (power hydraulics, indicator gauges, process automation, and memory recall for all controls)
Specifications
| Machine model |
3600 |
4800 |
| Height |
98” (249 cm) |
104” (264 cm) |
| Width |
111” (282 cm) |
123” (312 cm) |
| Length |
156.5” (398 cm) |
192.5” (489 cm) |
| Weight |
5,800 lbs (2,630 kg) |
7,600 lbs. (3,447 kg) |
| Deck area |
56.5” x 140.5” |
68.5” x 176.51” |
| With deck hood | ||
| Height |
104” (264 cm) |
110” (278 cm) |
| Weight |
7,300 lbs (3,311 kg) |
9,400 lbs (4,354 kg) |
| Amp draw @480/3/60 |
34 amps |
41 amps |
| Amp draw @240/3/60 |
68 amps |
82 amps |
| Fan zones |
4 |
5 |
| Fan control |
Manually operated |
Manually operated |
| Warranty | 1 year | 1 year |
