N-Series Separator

SKU: 2448N, 3648N, 4848N Categories: , Tags: , ,

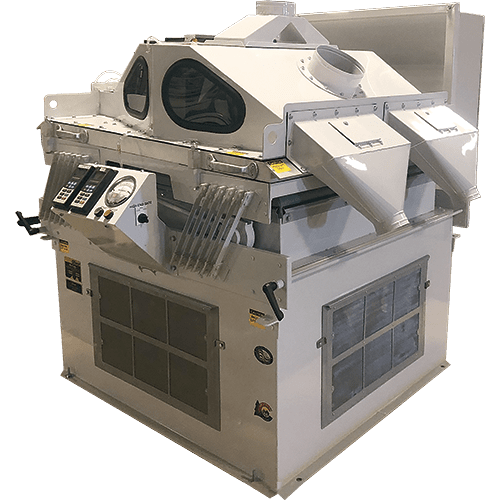

Oliver Hi-Cap N-series Destoner 4848
  • Oliver Hi-Cap N-series Destoner 4848
  • N-Series Destoner 4848
  • N-Series Destoner 2448
  • N-Series Destoner 3648
  • Oliver Hi-Cap N-Series Destoner Control Panel
  • Oliver Hi-Cap N-Series High End Gate Controls

Our N-Series Hi-Cap Industrial Separator ushers in a new level of performance in heavy particle separation. Our patented series fans produces uniform distribution of air through the deck with an improved air quality seal that reduces the potential for leakage. Control gates and under-deck diffuser ensure the correct air volume and improve the automatic separation of product.

A multiple throat deck design permits more precise machine adjustment and control, while the dust hood provides built-in feed and exhaust air controls. Large windows permit constant visual inspection of the product. This industrial separator also has easy machine adjustments (simple screw or clamp type) that allow you to have minimal workman training and supervision.

Contact us about this product

Product Resources

Manuals, Parts Lists, and Brochures

Additional information

Industry

Industrial Applications

Product Features

Operating control
  • Simple and effective adjustments
  • Intuitive manual controls
  • Adjustable tilt for enhanced quality
  • Built-in fan system with dampening control
  • Independent gauges for tilt, feed flow, airflow pressure, and eccentric speed
Ease of use
  • All adjustments can be made safely while machine is in operation
  • Separate air system for operation is not required
  • Spring-loaded adjustable heavy discharge gates(s)
  • Variable Frequency Drive (VFD) control for each adjustment of deck-eccentric speed
Performance
  • Efficient separation of heavy fraction
  • Wide range of deck-eccentric speed to optimize separation performance
  • Efficient air control for optimized separation quality
  • Decks are designed and built to your product specifications with custom over- and under-covers
  • Low maintenance for reduced downtime

Specifications

Mechanicals

MACHINE MODEL 2448N 3648N 4848N
Height 65” (165 cm) 65” (165 cm) 65” (165 cm)
Width 41” (104 cm) 53” (135 cm) 65” (165 cm)
Length 71” (180 cm) 71” (180 cm) 71” (180 cm)
Weight 960 lbs 1,200 lbs 1,300 lbs
Deck area 14” x 48” 26” x 48” 38” x 48”
With deck hood:
    Height 72” (183 cm) 72” (183 cm) 72” (183 cm)
    Width 1,250 lbs 1,500 lbs 1,700 lbs
Amp draw @480/3/60 7 amps 10 amps 10 amps
Amp draw @240/3/60 14 amps 20 amps 20 amps
Fan zones 2 2 3
Fan control Manual air gate Manual air gate Manual air gate
Warranty 1 year 1 year 1 year



Capacity

2448 3648 4848
Product Bulk (lb.) lb./hr. CFM lb./hr. CFM lb./hr. CFM
Corn 56 2,500 2,500 5,000 4,500 10,000 5,500
Popcorn 56 2,000 2,500 4,000 4,500 8,000 5,500
Soybeans 60 2,500 2,500 5,000 4,500 10,000 5,500
Peas 43 2,000 2,500 4,000 4,500 8,000 5,500
Lentils 60 2,000 2,500 4,000 4,500 8,000 5,500
Pinto beans 60 2,000 2,500 4,000 4,500 8,000 5,500
Garbanzo 60 2,000 2,500 4,000 4,500 8,000 5,500
Red kidney beans 60 2,000 2,500 4,000 4,500 8,000 5,500
